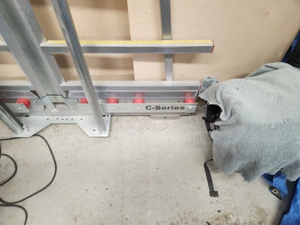

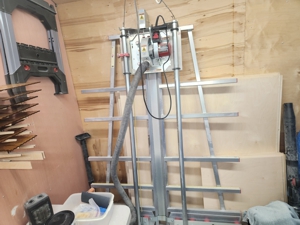

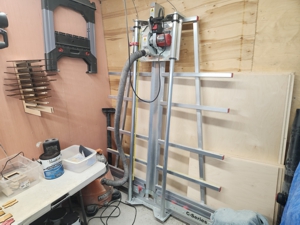

Item: Safety Speed C5 Vertical Panel Saw
Model: C5
Estimated Value: $1,000.00
This panel saw was used to cut the 5x5 foot sheets of Baltic Birch. Most panel saws can handle plywood up to 4 feet in width, so this is a very unique saw.
This panel saw can travel to work sites and fit into shops with limited floor space. The only difference between this machine and the C4 Panel saw are the maximum crosscut lengths.
Standard Equipment
Zinc plated 1 3/4" steel guide tubes.

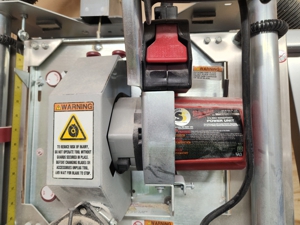

Milwaukee Tool motor
4 Nylatron roller bearing systems.
Adjustable vertical and horizontal rulers.
Quick change from vertical to horizontal cutting.
Thin material pressure guard.
Injection-molded plastic material rollers.
Spring loaded counter balance system.
Integrated dust collection bonnet.
Extended warranty.
TUV certified to UL/CSA standards
Weight 219 lbs
Dimensions 60 x 11 x 83 in
Max. Crosscut
64"/1625mm
Max. Rip Cut
96"/2450mm
Cut Depth
1 3/4" /45mm
Cut Accuracy
1/32"/.8mm
Frame Length
60"/ 525mm
Daily Usage
1-3 Hours
Rollers
8
Saw Blade Diameter
8"/210mm
Motor amps and volts
15 amp, 120 Volt, 7.5 amp, 220 Volt
Motor Manufacturer
Milwaukee Tool
