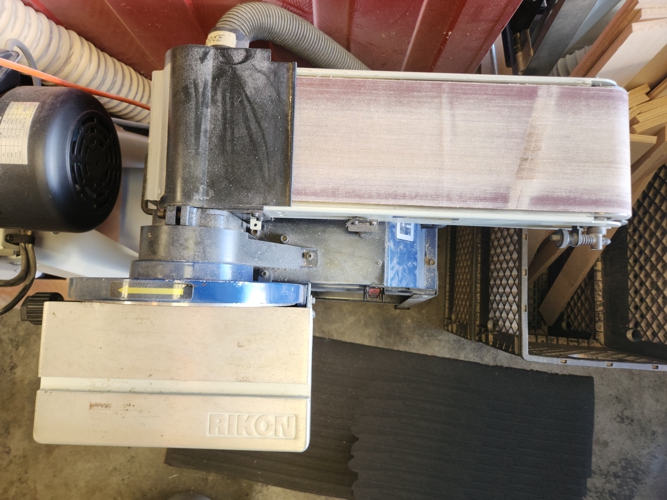

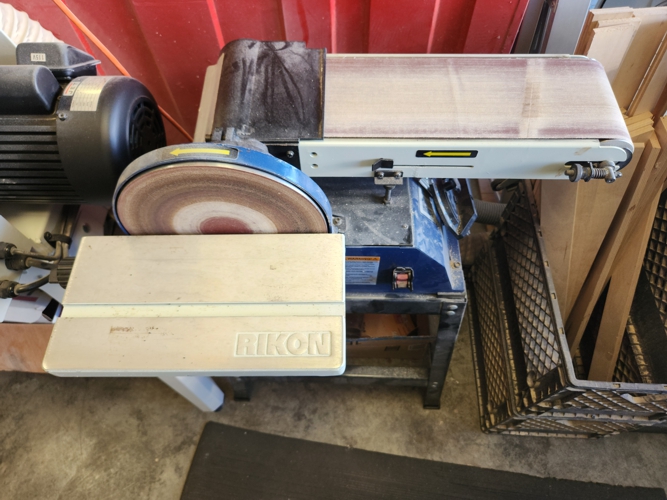

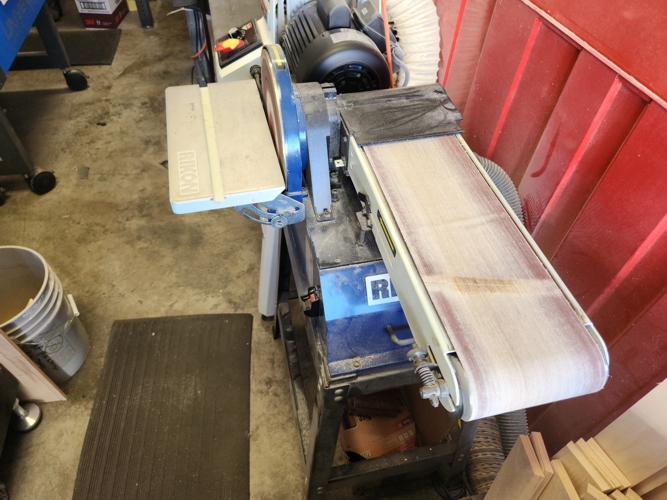

Item: Rikon Model 50-122: 6" x 48" Belt/ 10" Disc Sander
Model: 50-122
Estimated Value: $150.00
This machine was used to soften the edges of our wood products.
Cast Iron & Steel Construction
Belt Size 6" x 48"
Belt Tilts 0 - 90 Degrees
10" Disc Diameter
Includes: Steel Stand, Work Support Table, Miter Gauge, HEX Wrenches, Convenient Carrying Handles, 1 - 80 Grit Disc and 1 - 80 Grit Belt
6" x 48" Belt / 10" Disc Sander with Stand offers woodworkers the same belt and disc sizes and operating features as the #50-120, but, has a more powerful motor, re-designed base of sturdy, heavy gauge sheet steel, higher
positioned disc location, cast aluminum disc table with patented rack & pinion table angle-setting handle system, and it includes a steel stand.

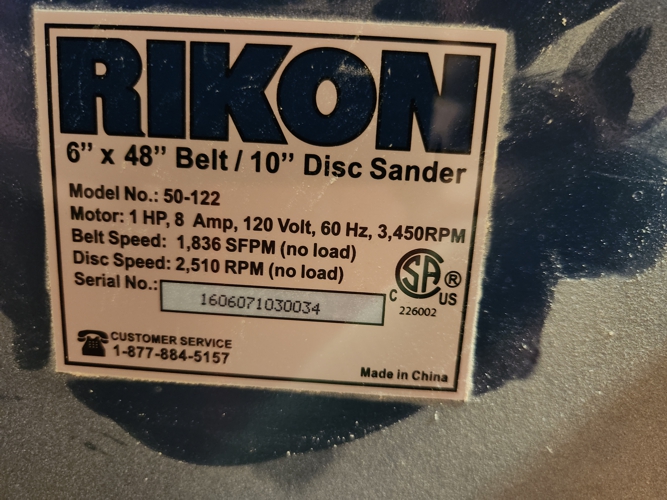

Motor Horsepower 1 HP
Motor Amps 8
Motor Volts 120V, 60 Hz
Body Construction Steel
Stand Included Yes
Disc Table Size 13" x 6-5/8"
Disc Table Tilt 0 to 45 Degrees
Disc Table Material Aluminum
Miter Gauge Included
Miter Gauge Slot 5/8" x 1/4" T-Slot
Belt Table Size 8-3/16" x 2-1/8"
Belt Size 6" x 48"
Belt Speed 1,836 SFPM
Belt Tilt 0 - 90 Degrees
Disc Diameter 10" PSA
Disc Speed 2,510 RPM
Overall Height 41-1/2" On Stand
Overall Width 22"
Overall Depth 31-1/2"
Overall Base Size 23-1/4" x 16-7/8" Stand Base
Dust Ports 1@2"
Overall Net Weight 86.6 lbs.
