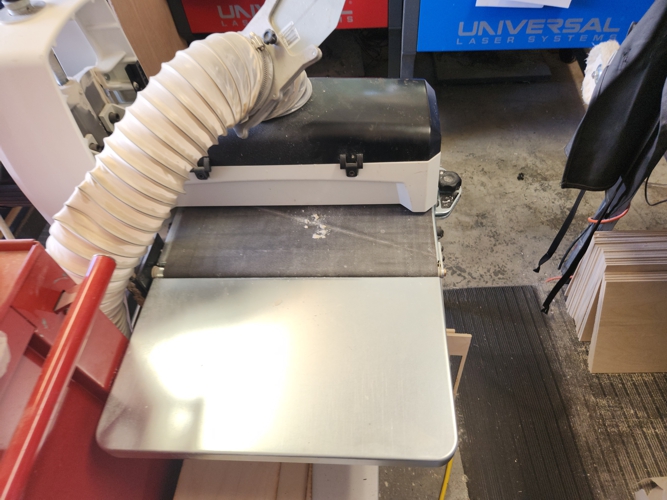

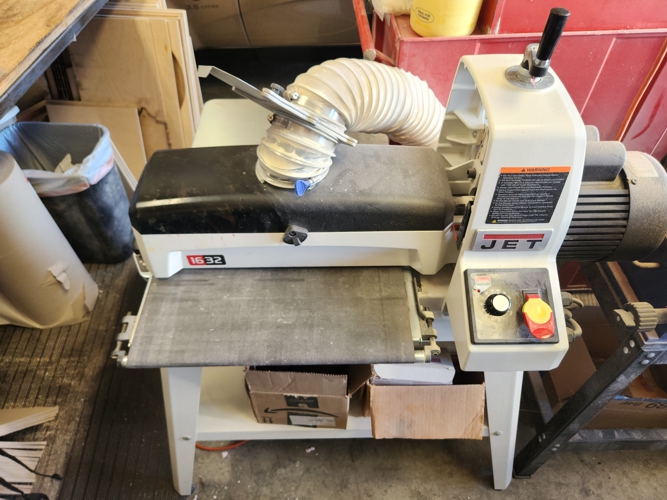

Item: Jet 16/32 Drum Sander with Stand
Model: JWDS-1632
Estimated Value: $750.00
This machine was used to save time by starting the sanding steps we used on our wood products.
The innovative tool-less parallelism system keeps adjustments simple.
The worktable is easily positioned by a turn of the parallelism dial.
The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the Sandsmart feature continuously monitors the load on the drum motor to prevent an overload situation.
The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish.
The JWDS-1632 Drum Sander delivers everything you need for an effortless finish.
Features
Self-Cooling Drum
Drum is easily removable
Drum utilizes sealed and permanently lubricated ball bearings for longer life
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
Integrated on/off switch and variable speed control knob are conveniently located
Precision-flattened reinforced steel conveyor bed
Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
Separate feed and drum motors provide independent control, optimizing the performance of the sander
Stand features a 20" x 37" footprint to increase stability and has a storage shelf and pre-drilled holes for casters
The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
Specifications
More Information
Stock Number JT9-723520K
Drum Bearing Diameter (In.) 1
Drum Diameter (In.) 5
Dust Collection Minimum CFM Required (CFM) 400
Dust Port Outside Diameter (In.) 4
Maximum Board Thickness (In.) 3
Minimum Board Length (In.) 2-3/8
Minimum Board Thickness (In.) 1/32

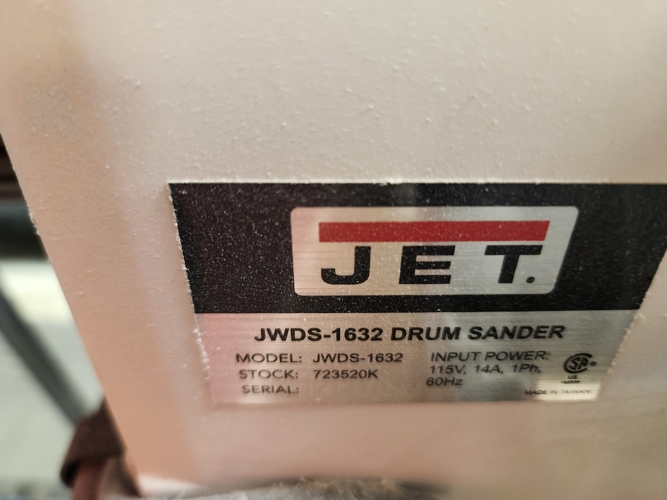

Model Number JWDS-1632
Motor Amps 14
Motor Power (HP) 1-1/2
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 20
Weight (Lbs.) 156
