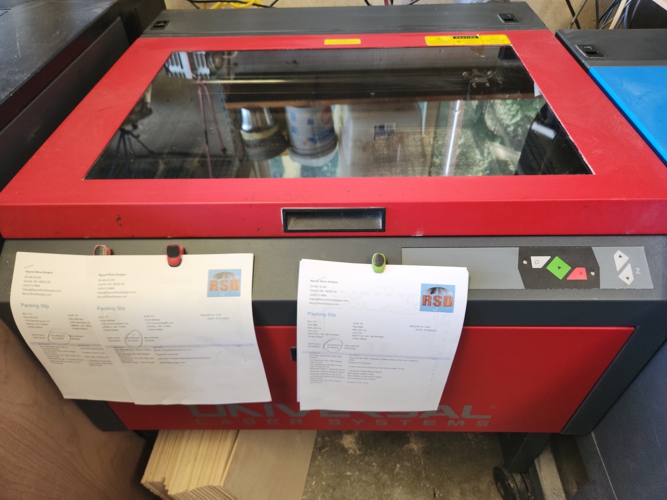

Item: Universal Laser 75 Watt
Model: VLS4.75 Worktable Size (24x18 Inches)
Estimated Value: $7000.00
Bought March 2021
This is our main machine that was used for cutting and engraving 1/4" Baltic Birch used in most of our items.
Powerful 75 watt can cut up 1/2" of material.
Engrave and cut wood, acrylic, cloth, leather, paper and a variety of other materials. Etch glass, stone, and mark metals.

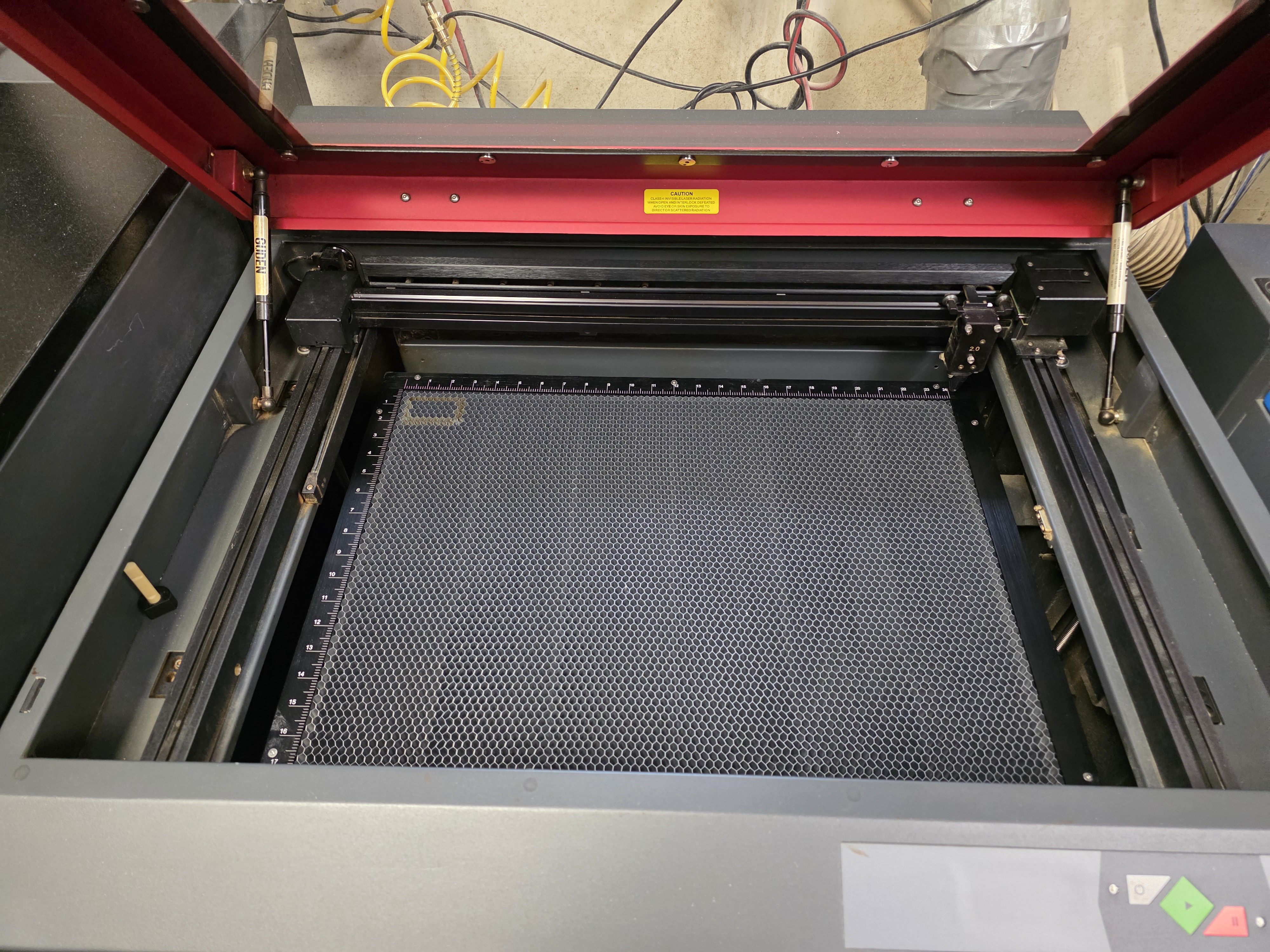

Includes honeycomb table for materials up 24x18" in size.
Includes ULS printer software and photo engraving software (free download from Universal Laser).
Runs on one PC using a USB connection. Can use optional rotary attachment for etching or engraving cylindrical items such as glassware.
All you need to provide is your own vector drawing program such as CorelDraw or Illustrator and a PC or Laptop.
Spare 1.5", 2", and 4" Laser lens
Laser Material Processing Area (W x H) 32 x 18 in (813 x 457 mm)
Maximum Part Size (W x H x D) 37 x 23 x 8.5 in (940 x 584 x 216 mm)
Overall Dimension (W x H x D) 44 x 39 x 36 in (1118 x 991 x 914 mm)
Rotary Capacity Max Diameter: 8 in (203 mm)
Motorized Z Axis Lifting Capacity 40 lbs (18 kg)
Focus Lenses 2.0 in (50 mm)
HPDFO (High Power Density Focusing Optics)
Laser Platform Interface Panel Five button keypad
Computer Requirements Requires dedicated PC with Windows 7/8/10 32/64 bit and one available USB port (2.0 or higher)
Optics Protection Integrated with included gas assist
Cabinet Style Free-Standing
75 Watts
Weight 325 lbs (147 kg)
Power Requirements 110V/10A
220V-240V/5A
Exhaust Requirements Two 4 in (102 mm) ports
500 CFM @ 6 in static pressure (850 m3/hr at 1.5 kPa)
